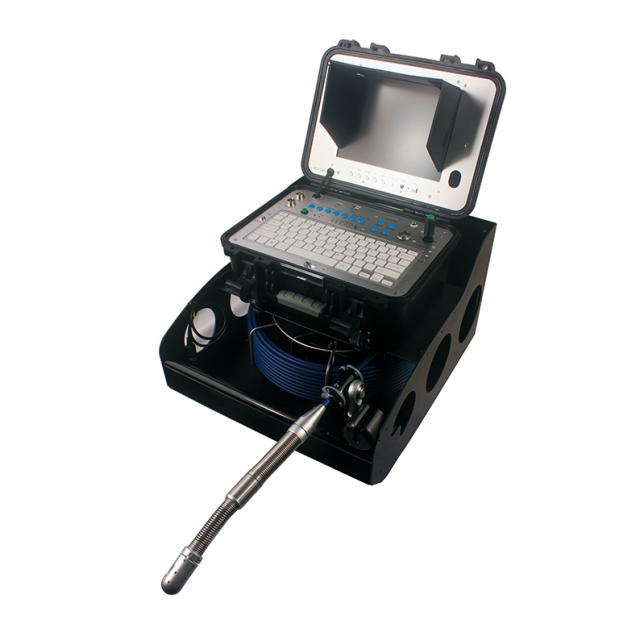

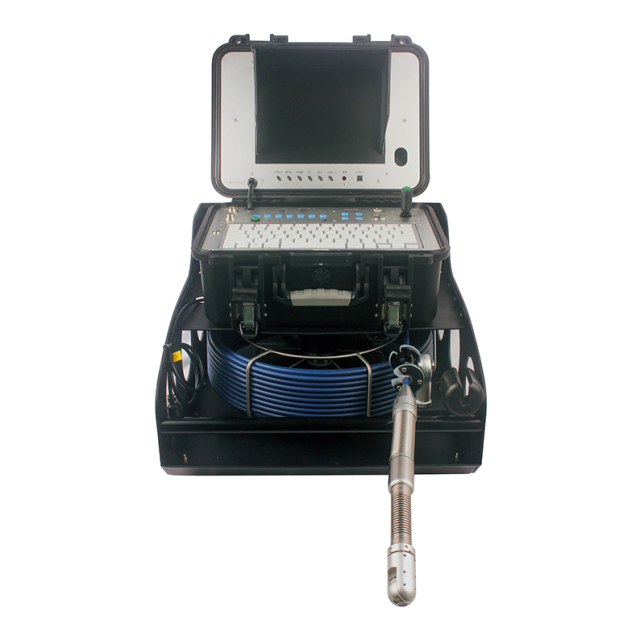

28mm Pan Tilt Rotation Camera Pipe Sewer Drain Plumbing Inspection Video System

Application Possibility

This model pipe drain sewer camera is one of the most small and durable Pan Tilt pipe inspection systems with compact design, which is well suited for inspecting sewers, drains, ducts, manholes, culverts, wells, and tanks.

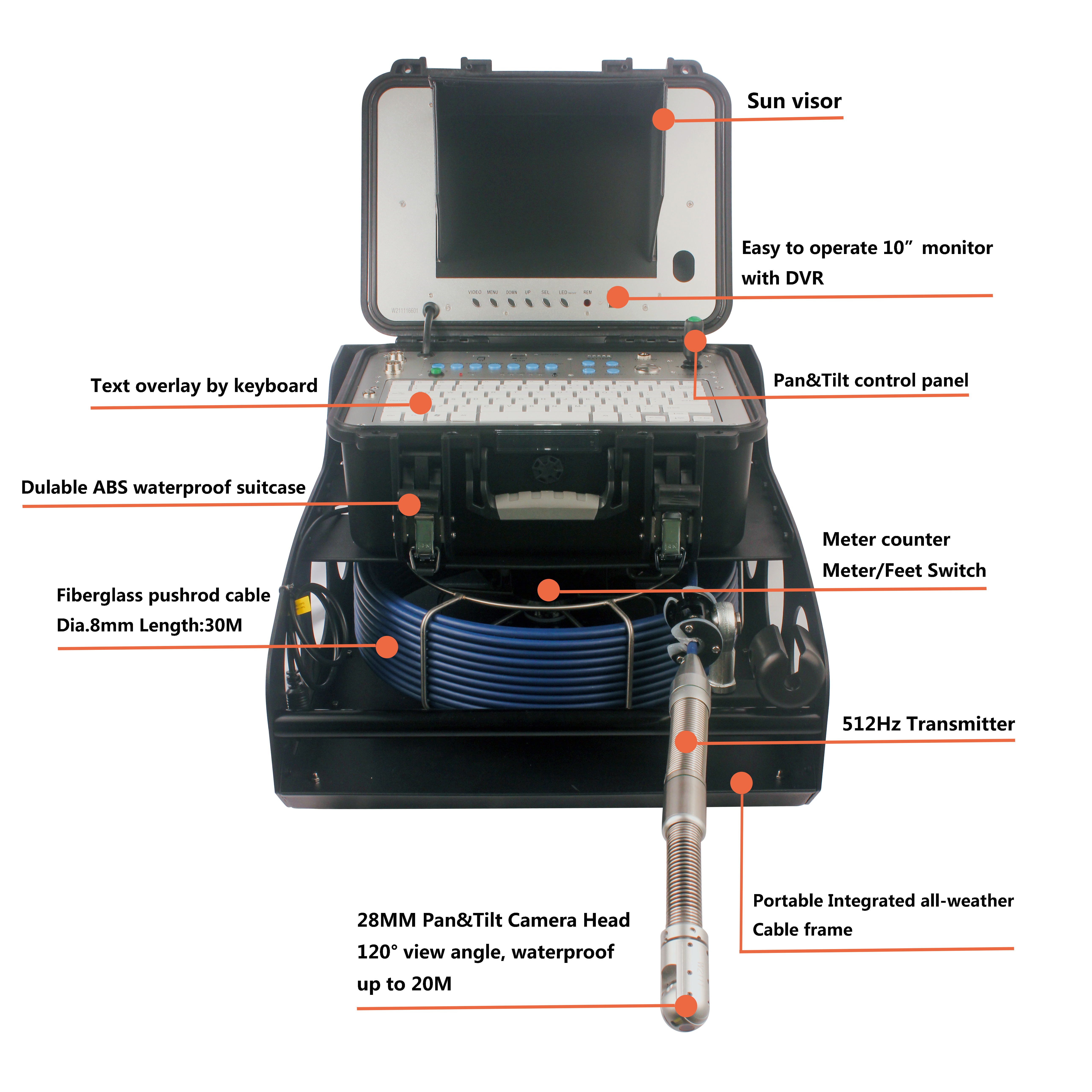

Features

• Unique Compact All in one Structure, Easy Handling;
• Sewer Inspection System with Pan-and-Tilt Camera head
• Almost 360° pan and 180° tilt view for fully survey and check
• Ø 28mm Interchangeable Camera Head with Stainless & Aluminum Housing
• IP68 Waterproof Sewer Camera Head
• High Resolution Color CMOS
• Built-in Powerful LEDs to Maximize Illumination
• 40M Push Rod cable Reel, Meter counter
• 10 inch TFT LCD Monitor DVR Controller with USB interface and rechargeable battery
• Optional Built in 512Hz Sonde
• Optional Centering Skids for Increased Visibility and Maneuverability in the Pipeline

Specification:

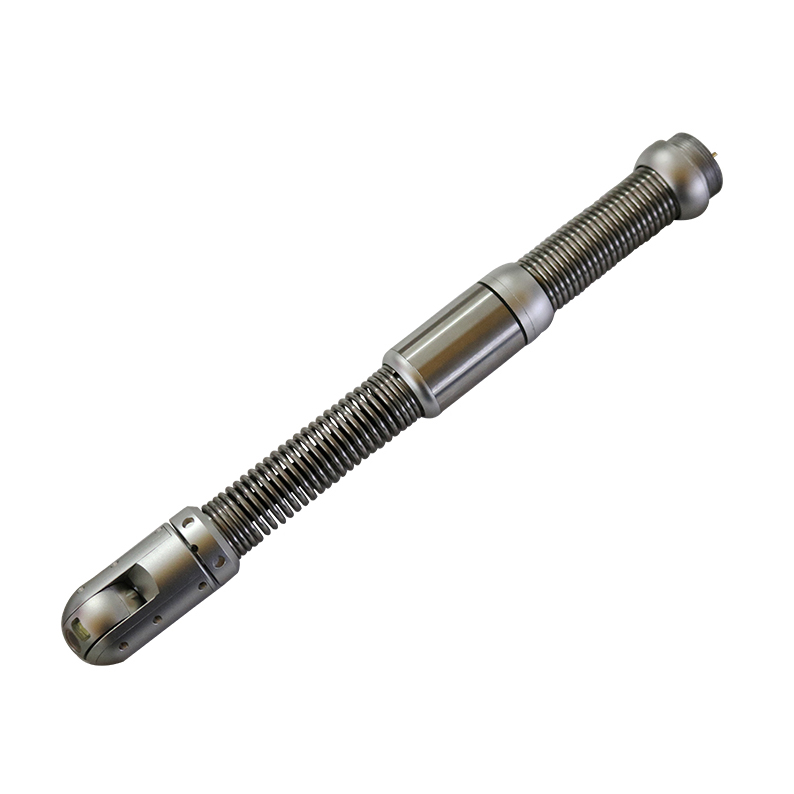

Φ28mm PT Camera Head

Camera size: ø28mm*282mm (including spring)

Video resolution: 900TVLine

Leds: 2pcs super bright LED

View angle: 60°

Waterproof: IP68

Auto reset function , Auto-balance

Push Rod Cable Reel

Material: Fiberglass Rod cable,

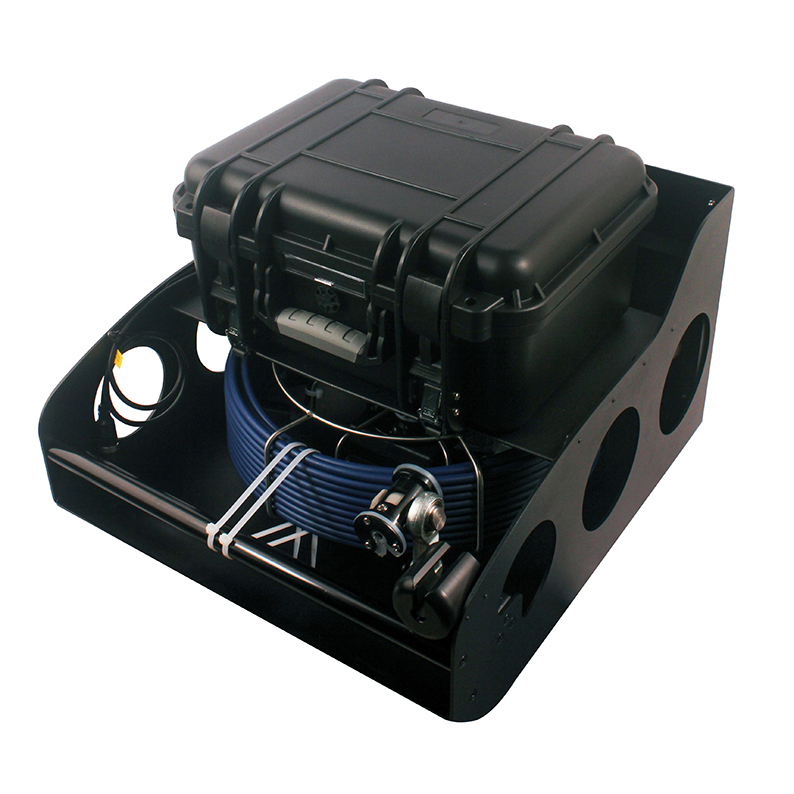

Reel: special All in one structure, easy handling,

Cable diameter:  8mm (optional)

Cable Length:     40M

Meter Counter: Digital Meter counter

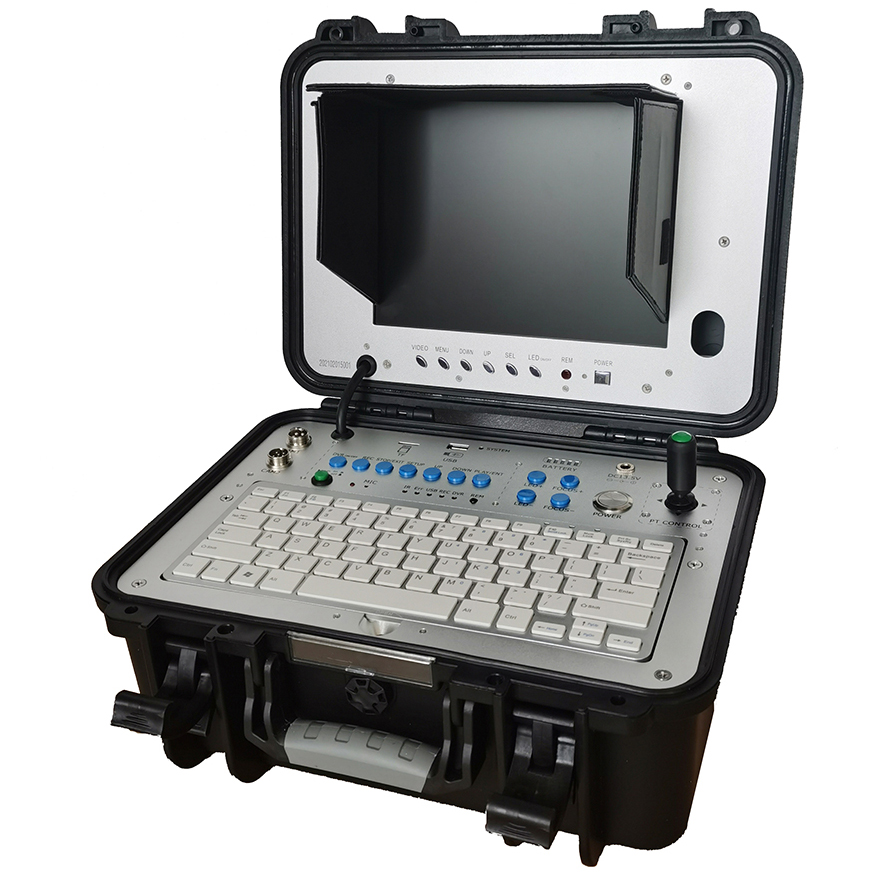

10 inch LCD Monitor DVR Controller

LCD Resolution: 800*600  pixels

Video Compress: MPEG-4

Recording: Video and audio recording

Snapshot: Yes

LCD Size: 10 inch

Operation Control: Panel Button and Remote Controller with joystick

Dual Mode Storage: USB Drive and SD-Card (Max 32G)

Power Supply: Switch Power Adaptor & Rechargeable Battery Pack

Built-in Text Writer with Keyboard

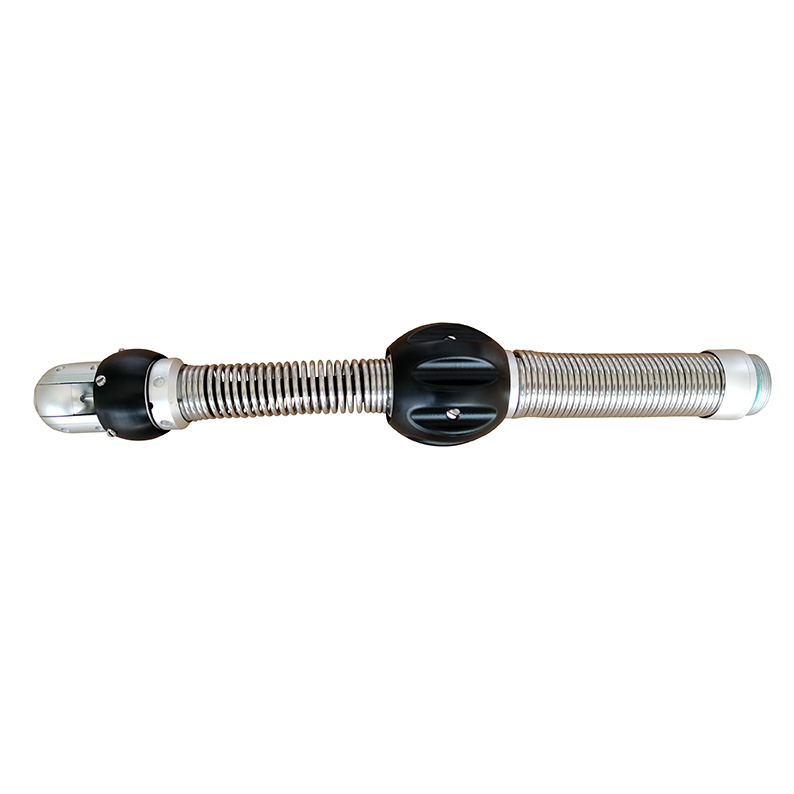

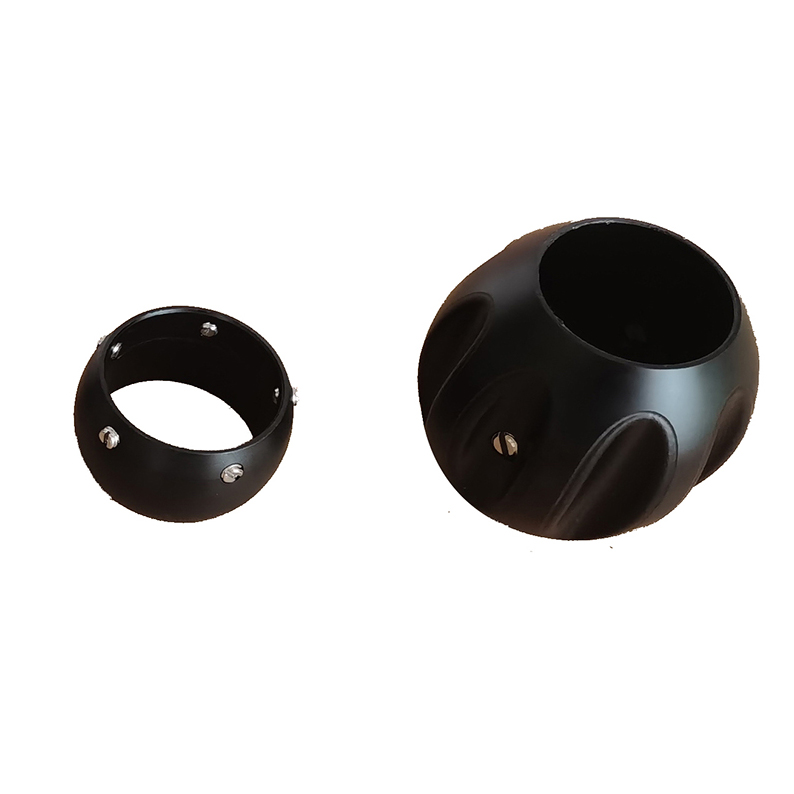

Standard Roller Skids

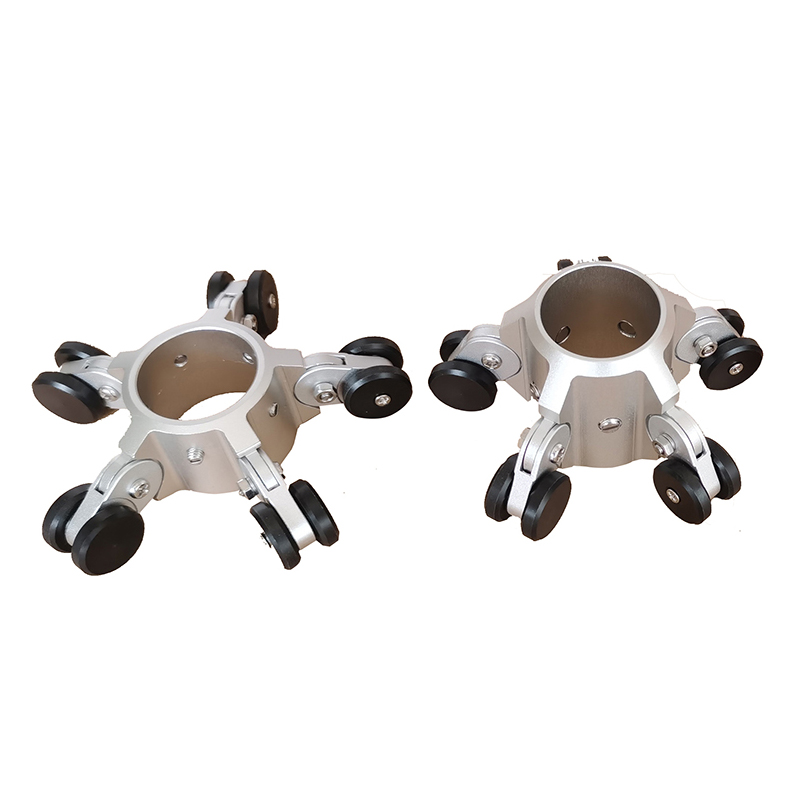

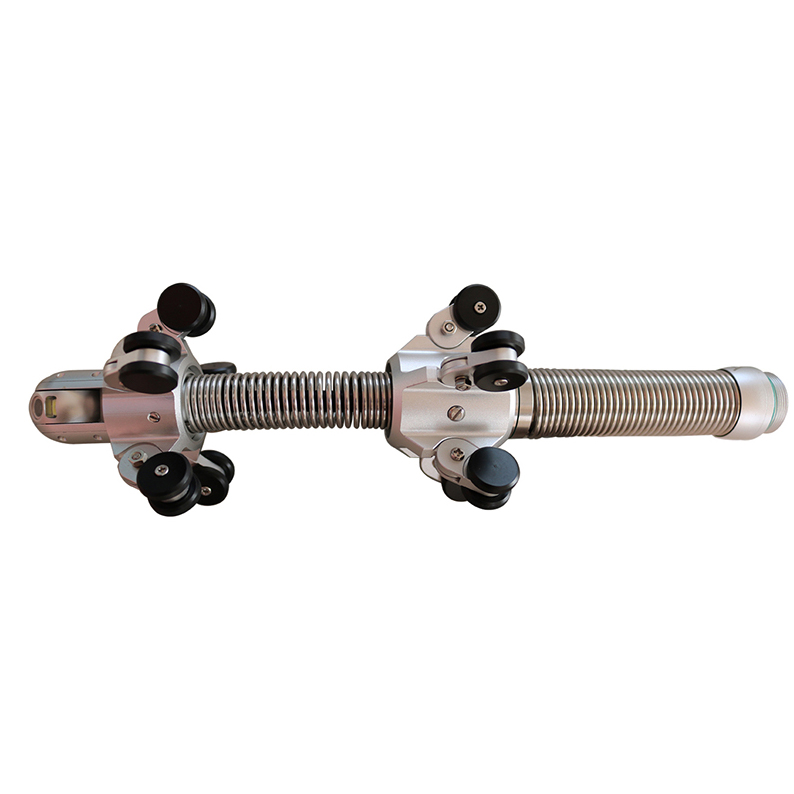

Optional Roller Skids

Package Information:

The whole system is packed in one carton



G.W.: 30.00KGS

Packing Measurement: 63x55x48cm
